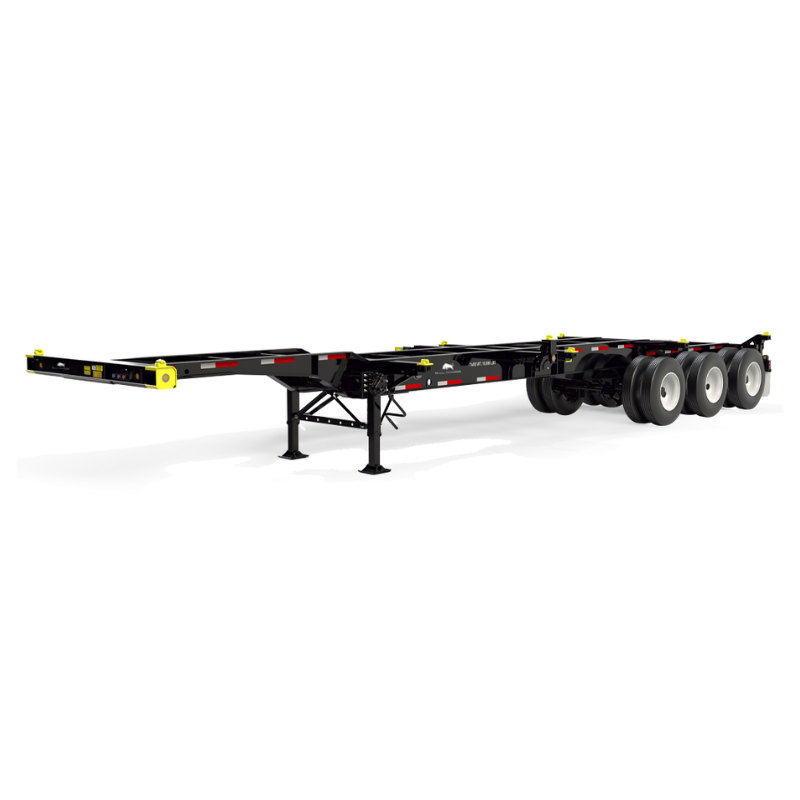

20/40’ 12 pins Triaxle Container Chassis
This chassis is designed to carry one ISO 20’ or 2 x 20’ empties or 40’ ISO containers This chassis meets all DOT, AAR, ANSI, TOFC, FMVSS, SAE and TTMA specifications.
Description
| Overall Length: | 31’-7” (retracted) or 40’-11” (extended) |
| Overall Width: | 96” |
| Fifth Wheel Height: | 47 ± 1” |
| Rear Deck Height: | 48 ± 1” |
| Landing gear Location: |
100” (From centerline of kingpin) |
| Kingpin Location: | 26” (From rear face of rear bolster to rear axles center when extended) |
| Axle Spread: | 61” + 61” |
| Tandem location: | 54” (From rear face of rear bolster) |
| Tare Weight: | 10,900 lbs ± 2% |
| Payload: | 66,100lbs for 20’ loaded or 74,100lbs for 40’ loaded |
